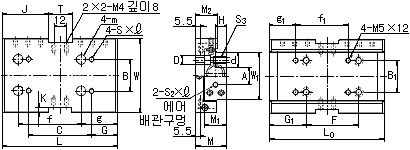

▶리니어 볼슬라이드 LSC형









호칭형번

최대
스트로크

S

+0.5
 0

실린더

내경

슬라이드 치수

이론추력
( 500kPa시)
N

높이
M
±0.05

폭
W

L

M2

B

C

G

S×피치×

m

g

f

J

T

K

M1

W1

LSC 1015

15

10

38.2

25

50

80

24

20

40

20

M 4×0.7×7

5.5

12.5

40

－

－

－

16.5

31.2

LSC 1515

15

15

86.3

30

70

80

21

30

40

19

M 5×0.8×8

9.0

28.5

40

29

22

4

21

45

LSC 1530

30

15

86.3

30

70

110

21

30

60

25

M 5×0.8×8

9.0

35

60

44

22

4

21

45

LSC 1550

50

15

86.3

30

70

150

21

30

100

25

M 5×0.8×8

9.0

50

50

64

22

4

21

45



호칭형번

L0

B1

베이스 치수

정적허용모먼트

기본정격하중

질량
kg

F

d

D

h

S3

G1

f1

g1

A

H

S2×피치×

MA,MB
N· m

MC
N· m

C
N

C0
N

LSC 1015

80

20

40

3.3

5.5

3.5

M 4×0.7

20

－

－

13

5.5

M 5×0.8×5

4.90

7.45

392

676

0.25

LSC 1515

80

30

40

5.2

9.0

9

M 6

21

23

29.5

17

10.5

M 5×0.8×4.5

4.90

11.1

392

676

0.37

LSC 1530

110

30

60

5.2

9.0

9

M 6

25

40

35

17

10.5

M 5×0.8×4.5

8.43

15.4

549

951

0.52

LSC 1550

150

30

100

5.2

9.0

9

M 6

25

78

36

17

10.5

M 5×0.8×4.5

15.4

22.1

794

1350

0.72
